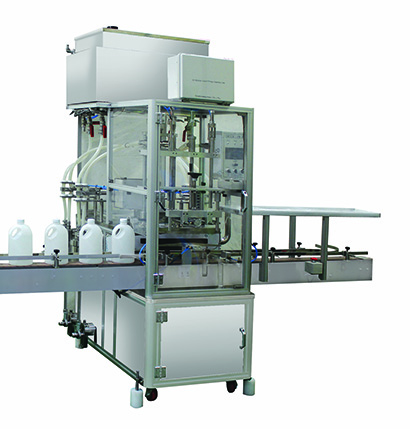

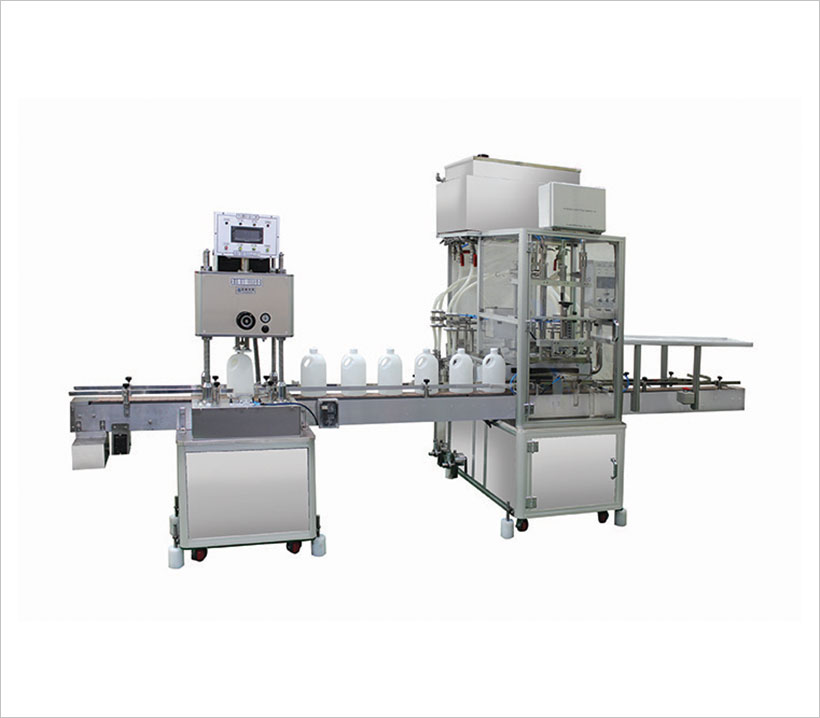

Free-fall - 자유 낙하식 레벨충전 캡핑 라인 (50ml~3500ml) Level Filling & Capping Line
■ 특징

- 자유낙하식 레벨 충전기는 저점도의 모든 액체에 적용이 가능하다.
- 자유낙하의 흐름을 이용하여 거품 발생을 억제 할 수있다.
- 충전량 설정이 타이머 셋팅으로 간편하게 조정 할 수있다.
- 콤팩트 라인으로 콘베어 길이 4m에 충전기와 만능 캡핑기가 연결되어진다.
- (SD-C3B TYPE)을 결합하여 미니라인을 구성 할 수있다.
- 이동성이 용이하고 만능 캡핑기의 경우 다른 콘베어로 옮겨 편리하게 사용할 수 있다.


■ Features

- Free-fall type level charger is applicable to all types of liquid.
- It can control the generation of bubbles by using free-fall flows
- You can control the charging setting simply by a timer.
- A compact line of 4-meter conveyor with chargers and multi-functional cappers.
- You can form a mini line by combining SD-C3B type.
- Easily transportable and, for multi-functional capper, comfortable for the use on the other conveyor.


■ CE
■ Specification

- Application : Cosmetic,Pharmaceutical,Food,Chemical Industries and atc.
- Operating Seed : 20~30 Pcs/min(1000ml)
- Filling Capacity : 50ml~3500ml
- Filling Style : Free-Fall Level Filling System.
- Option : Supply Tank, Filling Nozzle, Supply pump.
- Air Pressure : 4 - 5㎏/㎠
- Power : 220V (Single phase)
- Dimension : 4000(L) x 1000(W) x 2200(H)

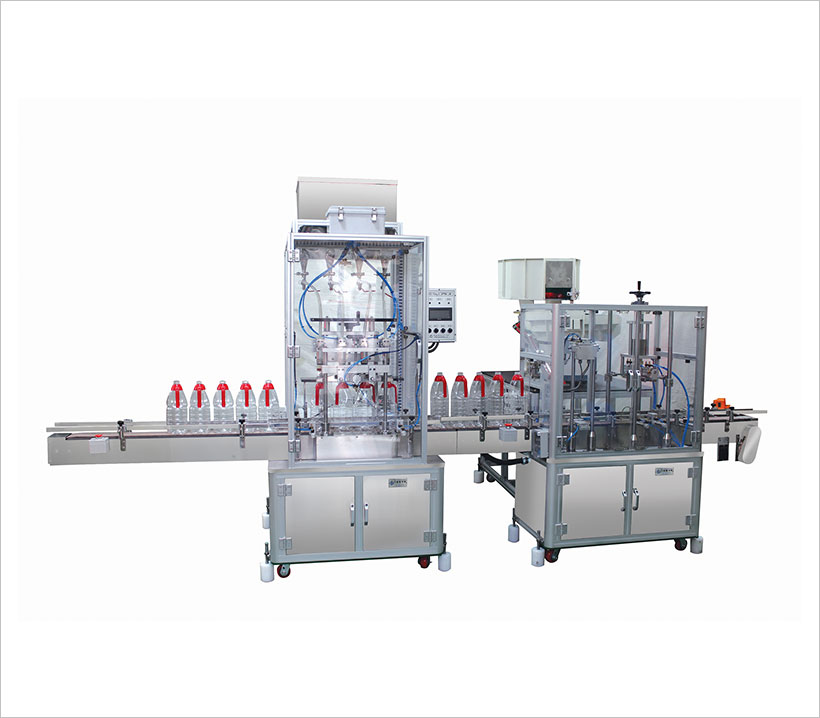

Semi-Auto Filing & Capping Line (100ml~1000ml)(500ml~1500ml)
Semi-Auto 충전(피스톤식4열) 캡핑라인(100ml~1000ml)(500ml~1500ml)

※ 캡핑속도 25~30개

■ CE
■ Specification

- Application : Cosmetic,Pharmaceutical,Food,Chemical Industries and atc.
- Operating Speed : 25~30Pcs/min
- Filling Capacity : 200ml~1500ml
- Filling Style : Free-Fall Level Filling System.
- Option : Supply Tank, Filling Nozzle, Supply pump.
- Air Pressure : 4 - 5㎏/㎠
- Power : 220V (Single phase)
- Dimension : 1200(L) x 900(W) x 2200(H)


Semi-Auto Air 세병. 충전(피스톤식2열)-캡핑라인(100ml~1000ml)
Semi-Auto Air 세병. 충전(피스톤식2열)-캡핑라인(100ml~1000ml)

※ 캡핑속도 25~30개

■ CE
■ Specification

- Application : Cosmetic,Pharmaceutical,Food,Chemical Industries and atc.
- Operating Speed : 25~30Pcs/min
- Filling Capacity : 10ml~200ml
- Filling Style : Free-Fall Level Filling System.
- Option : Supply Tank, Filling Nozzle, Supply pump.
- Air Pressure : 4 - 5㎏/㎠
- Power : 220V (Single phase)
- Dimension : 1200(L) x 900(W) x 2200(H)

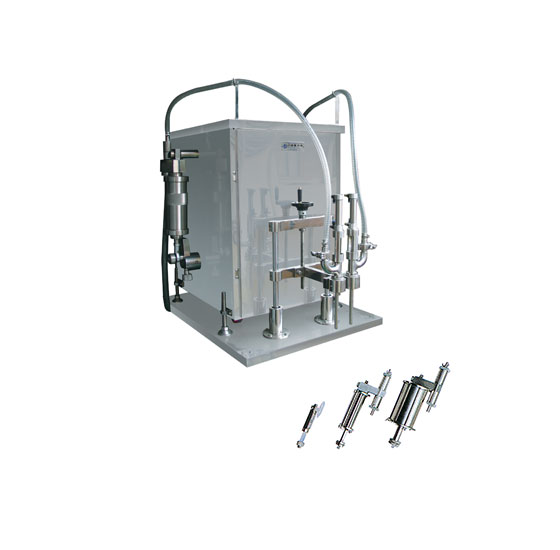

SD-2F - 정량 충전기 (피스톤식 2열) Type Filling Machine
■ 특징

- 거품발생이 예상되는 액체부터 고점도 세제류까지 다양한 액체를 충전할 수 있다.
- 충전과 동시에 노즐이 용기내 바닥에서 위로 리프팅 작동함.
- 충전이 끝난 시점 노즐 끝부분의 액흐름을 완전 차단시킴.
- 상부의 저장탱크로부터 곧바로 흡입하여 충전가능함.


■ Features

- You can charge various liquids ranging from bubble free liquids to highly various detergents.
- A nozzle is lifted up from the bottom of a container once the charging is completed.
- When the charging is completed. the liquid flow at the and of the nozzle is fully blocked.
- Can fill the supply from upper storage tank.

■ Specification

- Application : Cosmetic, Pharmacutical, Food, Chemical Industries and etc.
- Operating Speed : 18~25Pcs/min
- Filling Capacity : 50cc~2000cc(Piston Pump Change)
- Filling Style : Cylinder Piston Pump Type
- Option : Supply Tank, Piston Pump, Filling Nozzle
- Air Pressure : 5 - 6㎏/㎠
- Power : 220V (Single phase)
- Dimension : 950(L) x 850(W) x 1700(H)

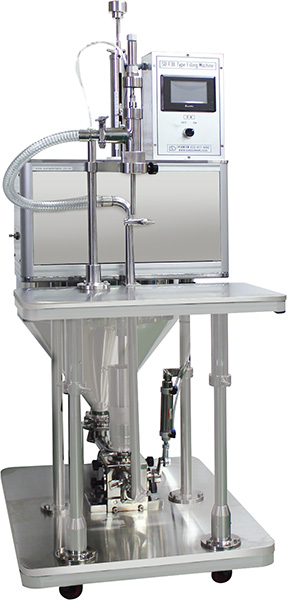

SD-F3B - 정량충전기 (피스톤식1열) Type Filling Machine
■ 특징

- 다품종 소량생산형이다.
- 호퍼에 내용물 공급이 쉬우며 작업자의 숙련도에 관계없이 누구나 쉽게 작업할 수 있다.
- 저점도 및 중점도의 제품은 자체호퍼를 사용하지 않고 제품저장 탱크로 부터 직접 흡입하여 충전이 가능하다.
- 충전작업 후 세척시간도 최단시간으로 간단히 청소할수 있다.
- 다양한 용기의 다양한 구경에도 노즐을 교환하여 적절히 충전할수 있는 구조로 되어있다.
- 좁은 공간에도 간편하게 설치가 가능하고 이동이 용이한 구조이다.


■ Features

- It is a type of small quantity batch production.
- You can charge products with low and medium viscosity directly from the storage tank without using own hoppers.
- You can easily clean up the product in the shortest time after charging
- You can appropriately charge the content by replacing nozzles despite there are various bores of different containers.
- You can simply install the product in a small space and easily move it to other places


■ Specification

- Application : Cosmetic,Food,Pharmacutical, etc
- Operating Speed : 15~20 Pcs/min(500g)
- Hopper Capacity : 80L
- Filling Capacity : 200g -1000g
- Filling Method : Piston Pump Type
- Option : PistonCylinder
- Air Pressure : 5 - 6㎏/㎠
- Power Consumption : 220V ( Single Phase ) ×0.1㎾
- Dimension : 1200(L) x 750(W) x 1400(H)
- Weight : 100㎏

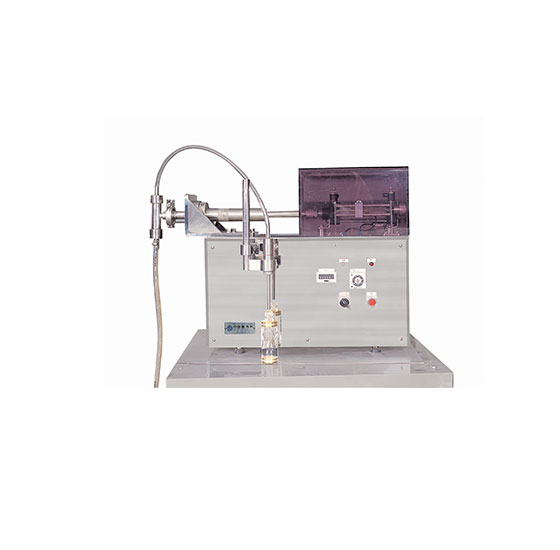

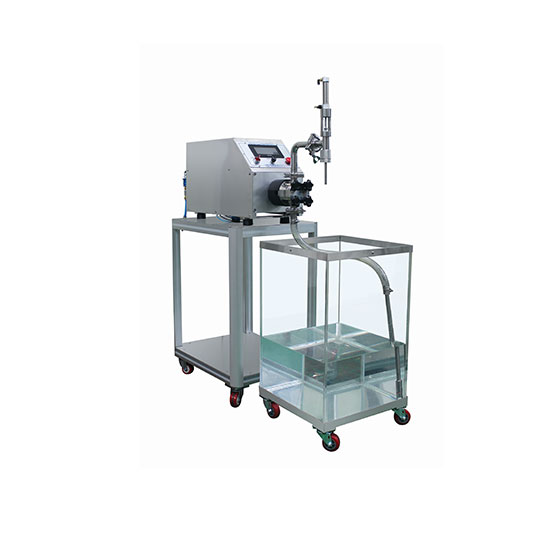

SD-PA - 펌프식 만능 충전기 Pump Type Multi Purpose Filling Machine
■ 특징

- 간단한 조작으로 2㎖ - 3.5L까지 광범위하게 충전 할 수 있다.
- 저점도의 제품인 경우 저장조로부터 호퍼 사용없이 직결 흡입하여 충전이 가능하다.
- 중점도 이상의 제품은 호퍼를 사용하여 내용물 손실없이 정밀 충전이 가능하다.
- 기존의 정량충전개념을 확고히 하기 위해 로드셀센서를 붙여서 시스템 제어된다.
- 이동이 용이하며 써니타리 구조로 작업후 청소 또한 간단히 해결된다.
- 용도 : 제약, 수액 또는 외용제, 크림, 로션제등
식품, 식초, 양념장, 쏘스, 된장, 고추장, 각종 주류 등
화장품, 삼푸, 린스, 오일, 로션, 크림류 등


■ Features

- You can charge with the various range from 2ml to 3.5 liters by simple operation.
- For products of low viscosity, you can charge directly from the storage tank without using hoppers.
- For products of medium or more viscosity you can precisely charge with hoppers to prevent the content loss.
- A load cell sensor is attached for the system control to ensure the existing concept of batch charging.
- Easily transportable and cleaning after operation is simple for sanitary structures.
- Intended use for pharmaceuticals, fluids, external applications, creams and lotions Food, vinegar, marinade, source, soybean paste,red pepper paste, beverages and others Cosmetics, shampoo, rinse,oil, logion, cream and others


■ Features

- Application : Liquid Type, Lotion Type, Mascara, Manicure, Lip Gloss, Remove etc.
- Operating Speed : 15~18 Pcs/min(100g)
- Filling Capacity : 2g - 1㎏
- Hopper Capacity : 25L
- Option : Filling-Nozzle
- Air Pressure : 4~5㎏/㎠
- Power : 220V ( Single Phase ) 0.4㎾
- Dimension : 800(L) x 650(W) x 1400(H)


SD-PB - 펌프식 만능 충전기 Pump Type Multi Purpose Filling Machine
■ 특징

- 간단한 조작으로 2㎖ - 1L까지 편리하게 충전 할 수 있다.
- 저점도에서 중점도의 액체를 주로 충전 할 수 있으며 자체 호퍼를 사용하기 보다는 제품저장탱크로부터 곧바로 흡입하여 충전이 가능하기 때문에 작업성이 뛰어나다.
- 작업완료 후에 청소시간도 짧고 간편한 구조로 되어 있다.
- 분해조립이 쉬우며 색조 제품을 사용 하기에도 편리한 구조이다.
- 용도 : 제약, 수액 또는 외용제, 화장품의 색조 제품, 매니큐어 등.


■ Features

- You can easily charge the content from 2ml to 1 liters by simple operation.
- You can mainly charge liquids with low to medium viscosity and charging can be directly from the storage tank instead of using own hoppers ensuring high usability
- The structure enables easy and quick cleaning after the work is completed.
- So disassembly and assembly very easy and it is appropriate for the use of color cosmetics.
- Intended use : pharmaceuticals, liquid solutions or external applications, color cosmetics, nail polishes and others


■ Specification

- Appication : Liquid Type, Lotion Type, Mascara, Manicure, Lip Gloss, Remove etc.
- Operating Speed : 15~20 Pcs/min
- Filling Capacity : 2cc~ 2,000cc
- Option : Open Type Hopper (35L)
- Power : 220V (Single Phase) 0.4㎾
- Air Pressure : 2~3kg/cm
- Weigth :30㎏


SD-FB - 기포제거용 반자동 크림충전기 Type Jar Rotating Cream Filling Machine
■ 특징

- 소량, 다품종 생산에 적합한 모델이다.
- 충전시에 용기가 동시에 회전하며 One 싸이클에 완벽한 충전이 이루어진다.
- 에어포켓이 생길 수 있는 모양의 Bottle 에 알맞은 충전기이다.
- 충전펌프 구동부는 강제 캠 방식으로 스트로크가 안정적이다.
- 용기홀더에 용기를 공급하지 않으면 충전되지 않는다.
- 충전펌프는 피스톤펌프 방식이며, 분해, 살균, 청소가 간단하다.


■ Features

- It is an appropriate model for small quantity patch production.
- The container rotates concurrently during charging and charging can completely done by one cycle.
- The operating part of the charging pump is a compulsory cam type and therefore the stroke is stable.
- It is a charger appropriate for bottles with a shape which can generate air pockets.
- The operating part of the charging pump is a compulsory cam type and therefore the stroke is stable.
- When a container is not supplied in the holder, charging is not available.
- The charging pump is gear pump type and it is easy to disassemble, sterilize and clean.


■ Specification

- Application : Various Creamy Products (Including Medicine, Cosmetics, Foods, etc)
- Operating Speed : 20~30 Pcs/min(1000ml)
- Filling Capacity : 50ml ~ 3500ml
- Option : Piston Pump Change
- Air Pressure : 4 ~ 5㎏ / ㎠
- Power : 220V (Single Phase)
- Dimension : 850(L) x 1250(W) x 1800(H)
- Weight : 250㎏

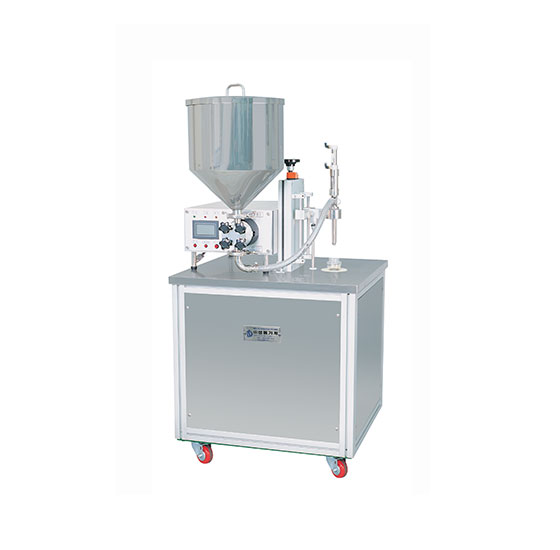

SD-FC - 기포제거용 다목적 크림충전기 Type Jar Rotating Cream Filling Machine
■ 특징

- 소량, 다품종 생산에 적합한 모델이다.
- 충전시에 용기가 동시에 회전하며 One 싸이클에 완벽한 충전이 이루어진다.
- 에어포켓이 생길 수 있는 모양의 Bottle 에 알맞은 충전기이다.
- 충전펌프 구동부는 서보모터 제어방식이다.
- 용기홀더에 용기를 공급하지 않으면 충전되지 않는다.
- 충전량 셋팅이 디지털 프로그램화 되어있으므로 매우 편리하다.


■ Features

- It is an appropriate model for small quantity patch production.
- The container rotates concurrently during charging and charging can completely done by one cycle.
- It is a charger appropriate for bottles with a shape which can generate air pockets
- Filling pump dirving part utilizes a servo motor control.
- When a container is not supplied in the holder, charging is not available.
- Filling amount setting is controlled by a convenient digital program.


■ Specification

- Appication : Various Creamy Products (Including Medicine, Cosmetics, Foods, etc)
- Operating Speed : 10 ~ 15Pcs/min
- Filling Capacity : 5g ~ 500g
- Option : Nozzle Change
- Hopper Capactiy : 35L
- Air Pressure : 4 ~ 5㎏ / ㎠
- Power : 220V (Single Phase) 1㎾
- Dimension : 550(L) x 650(W) x 1600(H)
- Weight : 130㎏


SD-F4A - 액상충전기 (피스톤식 4열) Auto-Liquid Filling Line
■ 특징

- 액체 또는 세제라인 충전에 적합한 모델이다.
- 직선라인 System으로 넓은 공간이 필요치 않다.
- 충전 노즐이 상 ,하 슬라이딩 하므로 거품없이 안정적인 충전상태를 유지한다.
- 노즐 끝 부분에서 내용물이 차단되므로 깨끗한 충전상태를 유지한다.
- 충전노즐이 4노즐 이상으로 증가시킬수 있는 형태이다.


■ Features

- It is appropriate model for charging liquids or detergents
- It has a straight line system and therefore does not require wide spaces.
- The charging nozzle slides up and down and therefore it maintains stable charging status without bubbles.
- It can maintain clean charging status by blocking the contents at the end of the nozzle.
- You can increase the number of charging nozzles more than 4.


■ Specification

- Application : Glass Washer,Shampoo,Detergents and Gelled Goods.
- Operating Speed : 30 -40 Pcs/min
- Filling Capacity : 200 ~ 1000㎖
- Option : Piston Pump Change,Supply Tank(120㎏)
- Filling Method : Piston Pump Type
- Filling Nozzle : 4 Nozzle
- SupplyConveyor : SUS Top-Chain Conveyor
- Air Pressure : 4 - 5㎏/㎠
- Power Consumption : 220V ( Single Phase ) 1.5㎾
- Dimension : 2400(L) x 1350(W) x 1650(H)
- Weight : 400㎏

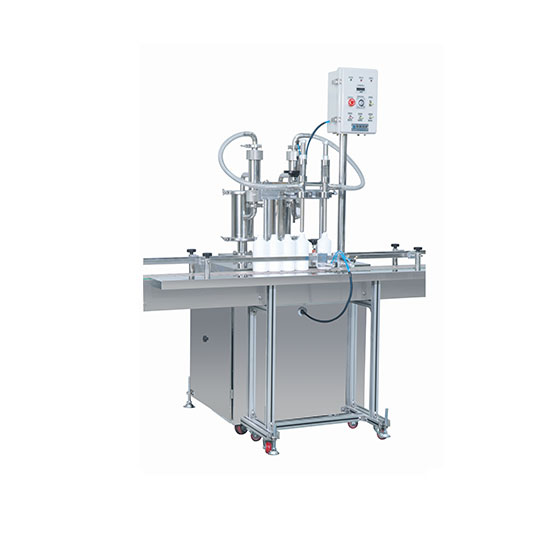

SD-F4B - 액상충전기(공압구동 피스톤식 2열) Type Semi-Auto Liquid Filling Machine
■ 특징

- 저점도 액상 세제류 충전에 적합한 모델이다.
- 직선라인 System으로 넓은 공간이 필요치 않다.
- 충전 노즐이 상 ,하 슬라이딩 하므로 거품없이 안정적인 충전 상태를 유지한다.
- 노즐 끝 부분에서 내용물이 차단되므로 깨끗한 충전상태를 유지한다.


■ Features

- Application : Glass Washer, Shampoo, Detergents and Gelled Goods.
- It is appropriate model for charging liquid detergents of low viscosity.
- It has a straight line system and therefore does not require wide spaces.
- The charging nozzle slides up and down and therefore it maintains stable charging status without bubbles.
- It can maintain clean charging status by blocking the contents at the end of the nozzle.


■ Specification

- Application : Glass Washer, Shampoo, Detergents and Gelled Goods.
- Operating Speed : 18~25 Pcs/min
- Filling Capacity : 200 - 1000㎖
- Option : Piston Pump Change ,Supply Tank (150㎏)
- Filling Method : Piston Pump Type
- Filling Nozzle : 2Nozzle
- Supply Conveyor : SUS Top-Chain Conveyor
- Air Pressure : 4 - 5㎏/㎠
- Power Consumption : 220V (Single Phase) 0.5㎾
- Dimension : 950(L) x 850(W) x 1650(H)
- Weight : 200㎏

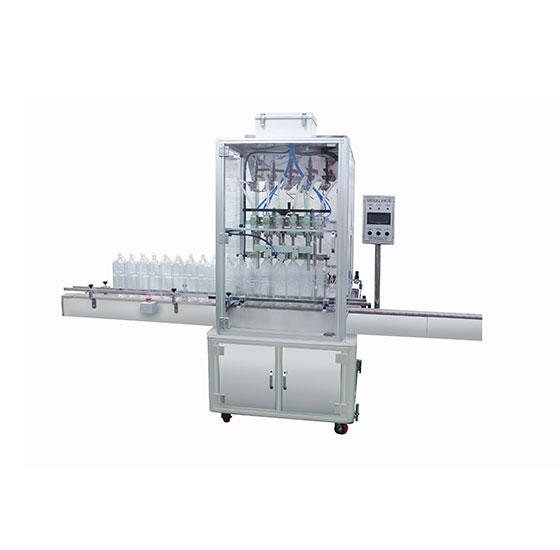

SD-F4C - 자유낙하식 레벨 충전기 (6노즐) Free-Fall Level Filling System
■ 특징

- 흐름이 자유로운 저점도의 모든 액체에 적용이 가능하다.
- 자유낙하의 흐름을 이용하여 거품 발생을 억제 할 수 있다.
- 충전량 설정이 초미세 타이머 셋팅으로 정밀조정이 가능하다.


■ Features

- It is applicable to all types of medium viscosity liquids which have free flows.
- It can control the generation of bubbles by using free-fall flows.
- Can set precise filling amounts with super-precision timer setting.


■ Specification

- Application : cosmetic, Phamacefical, Food Chemical Industries and etc.
- Operating Speed : 20~30 Pcs/min(1000ml)
- Filling Capacity : 50ml~3500ml
- Filling Style: Free-Fall Level Filling System
- Air Pressure : 4 - 5㎏/㎠)
- Power : 220V (Single Phase)
- Dimension : 2000(L) x 900(W) x 2200(H)

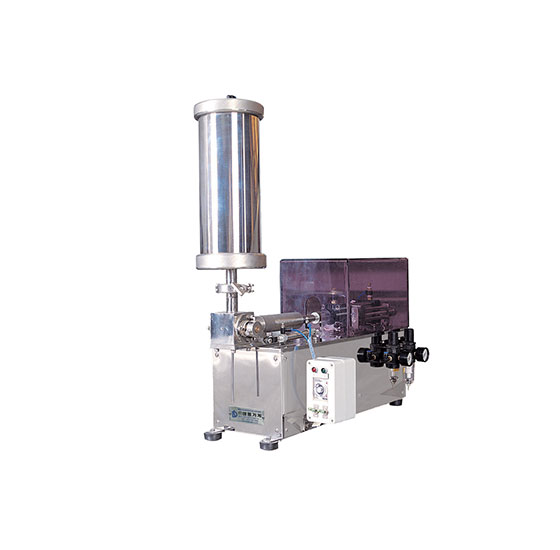

SD-F5A - 정량 충전기 (피스톤식 2열) Type Filling Machine
■ 특징

- 피스톤 브란져 펌프 Type
- 모타 회전에 의한 구동 방식이다.
- 저장조로부터 직접흡입하여 충전되며 지점도 액체의 충전에 주로 사용 되어진다.
- 1사이클에 2노즐이 충전되므로 효율이 증대
- 비교적 적은양의 충전에 적합한 모델이다.


■ Features

- Piston plunger pump type.
- It is operated by the motor rotation.
- You can charge 2 nozzles in one cycle which increases efficiency.
- Suiltable for relatively smaller fillings.


■ Specification

- Application : Perfum, Eye Drops, Oil Liquid Type etc.
- Operating Speed : 20 ~ 30Pcs/min
- Filling Capacity : Change Part
  1) 2~15㎖
  2) 15~50㎖
  3) 30~100㎖
  4) 100~500㎖
  5) 500~1000㎖
- Material : sus304, Urethane Hose
- Option : Cylinder Piston Pump.
- Power : 220V (Single Phase) 0.2㎾~1.5㎾
- Dimension : 900(L) x 800(W) x 900(H)
- Weight : 120㎏


SD-F5B - 소형액체분주기 Mini Type Liquid Filling Machine
■ 특징

- 간단한 조작으로 3㏄ ~ 300㏄ 까지 액체 충전이 된다.
- 저장조로부터 직접흡입하여 충전되며 가볍고 운반이 편리하다.
- 써니타리 구조로 분해, 청소, 세척이 간단하다.
- 구동부가 공압 실린더로 되어 콤팩트하다.


■ Features

- It can charge liquids of 3cc to 300cc by simple operation.
- It can charge directly from the storage tank while it is light and easily transportable.
- Sanitary structure enables easy disassembly, cleaning and cleansing.
- The operating part consists of pneumatic cylinder and therefore is very compact.


■ Specification

- Application : Perfum, Eye Drops, Oil Liquid Type etc.
- Operating Speed : 15 ~ 20Pcs/min
- Filling Capacity : 3㏄ ~300㏄
- Material : SUS 304, Urethane Hose
- Option : Cylinder Piston Pump.
- Air Pressure : 4~5㎏ / ㎠
- Power : 200V (Single Phase) 0.1㎾
- Dimension : 600(L) x 300(W) x 500(H)
- Weight : 40㎏


SD-T1 - 튜브 충전기 Type Tube Filling Machine
■ 특징

- 내용물 충전과 씰링, Cutting 기능이 조합되어 있어 능률적이며 다품종 소량생산에 최적이다.
- 특히 초음파 씰링으로 씰링면이 깨끗하며 불량도 거의 발생하지 않는다.
- 셋팅조작이 복잡하지 않고, 작업전환이 용이하다.


■ Features

- A combination of content charging, sealing and cutting enables small quantity batch production with efficiency.
- Especially, the ultrasonic sealing makes the sealed edge clean and almost no defects.
- Setting is not complicated and conversion of works is simple.


■ Specification

- Operating Speed : 15 ~ 20 Pcs/min
- Filling Range : 5-300g (Cylinder Piston Change)
- Sealing Range : Tube Diameter 10Ø ~55Ø
- Sealing Method : ultrasonic sealingmethod.
- Tube Supply : Manual
- Option : Tube Hold Socket & Cylinder Piston Pump.
- Air Pressure : 5 ~ 6㎏ / ㎠
- Power : 220V (Single Phase) 1.5W
- Dimension : 950(L) x 1350(W) x 1800(H)

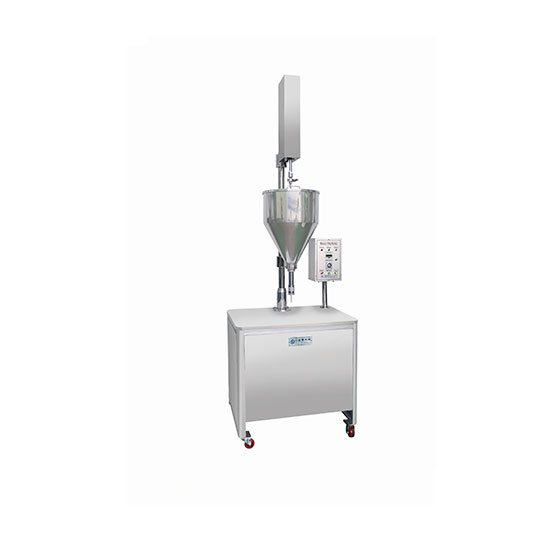

SD-PMS - 고점도 스크류 충전기 High Viscosity Screw Filling Machine
■ 특징

- 일반적인 피스톤 충진기로 충진이 어려운 고점도 충진에 적합함
- 잘게 갈려진 야채, 채소류, 과일류 등 이 혼합된 슬럿지 형태의 양념류 또는 소스종류, 김치양념류 등
- 재래식 된장류, 고추장, 생 와사비, 청국장, 경옥고 등의 제품에 적합함


■ Features

- Suitable for high viscosity filling which is hard to do with normal piston fillers.
- It is suitable for the products such as sludge-type seasonings and sauces including finely ground vegetables or fruits, i.e., kimchi seasonings etc.
- traditional bean pastes, red pepper pastes, raw wasabi, cheonggukjang (fast-fermented bean paste) and gyeongokgo (restorative herb medicine).


■ Specification

- Application : 고점도식품류, 양념류, 스럿지형태의 양념류, 재래식된장, 고추장, 생와사비, 청국장, 경옥고 등
- Operating Speed : 8~10 Pcs/min(0.5kg)
- Filling Capacity : 100g ~ 5kg
- Filling Style : Double Screw & Load - Cell Filling System.
- Option : Supply Tank, Filling Nozzle, Supply pump.
- Air Pressure : 4 ~ 5㎏/㎠
- Power : 220V ~ 380V(3-Phase)
- Dimension : 1200(W) x 650(L) x 1750(H)


매니큐어,샘플류 충전기 Manicure & Sample
■ 특징

- 다품종 소량생산에 최적합 모델이다.
- 청소 및 분해 조립이 간단하다.
- 소용량 충전에 주로 사용된다.
- 점도의 고저에 관계없이 광범위하게 사용가능하다.


■ Features

- It is a model optimized for small quantity batch production.
- It is easy to clean, assemble and disassemble.
- It is mainly used for charging of small volumes.
- It can be widely used regardless of the viscosity levels.


■ Specification

- Application : High Viscosity Cream And Gel Goods, Lotion ets.
- Operating Speed : 30~35 Pcs/min
- Filling Capacity : 1g ~ 30g
- Hopper Capacity : 35L
- Nozzle : Check Valve Type
- Air Pressure : 4~5kg/cm
- Power : 220V (Single Phase)
- Dimension : 800(L) x 650(W) x 1950(H)
- Weigth : 80㎏


마스카라 충전기 (가압식) Mascara Filling Machine
■ 특징

- 마스카라,립그로스,립스틱 등 고점도 내용액 충전에 적합하다.
- 호퍼에 압축공기를 주입하여 가압시키므로 고점도 제품을 충전함
- 정량 셋팅은 피스톤 행정거리로 제어함


■ Features

- It is appropriate for the charging of highly viscous contents such as mascara, lip gloss and lip stick
- You can charge the product with high viscosity by putting compressed air in.
- You can control the quantity setting by piston path.


■ Specification

- Application : Phamacutical, Food, Chemical Industries and Conmetics.
- Operating Speed : 20~25 Pcs/min(200g)
- Filling Capacity : 5g - 1kg(Piston Pump Change)
- Hopper Capacity : 80L
- Option : Cylinder Piston Pump
- Air Pressure : 4~5㎏/㎠
- Power : 220V (Single Phase) 0.1㎾
- Dimension : 1100(L) x 700(W) x 1200(H)


SD-FV - 진공흡입식 레벨충전기 Vaccum Suction Type Level Filling Machine
■ 특징

- 거품이 예상되는 액체의 충전에 적합하다.
- Vacuum Ejector의 진공을 이용하여 용기에 레벨충전이 가능하다.
- Over flow된 내용물을 진공탱크에서 자동으로 배출 드레인 된다.
- 제품의 저장조에서 직접 흡입하여 용기에 충전된다.
- 충전액은 제품의 저장조에서 직접 흡입하여 용기에 충전된다.


■ Features

- It is appropriate to charge liquids with bubbles.
- Level charging is avaliable by using vacuum ejector.
- Contents which were over flowed can be automatically drained into the vacuum tank.
- You can charge the content into bottles by directly drawing from the product storage tank.


■ Specification

- Application : Suitvble To Fill Bubble Originating Fluid Skin, Liquid Foods, Medicines.
- Operating Speed : 20 ~ 30Pcs/min
- Filling Capacity : 30cc~ 2000cc
- Air Pressure : 2 ~ 3㎏ / ㎠
- Dimension : 800(W) x 650(L) x 1600(H)
- Weight : 60㎏


SD-FL3 - 중량식 대용량 충전기 Load Cell weight Type Filling Machine
■ 특징

- 저점도 액상세제류 또는 식품 소스류 기타 공산품 등을 업소용으로 대 포장 충전 할 경우에 적합하며 계량방식이 저울과 같은 센서를 적용했기 때문에 정확한 량의 충전이 이루어지며 소포장도 같이 겸할 수 있어 다용도로 사용 가능합니다.


■ Features

- It is suitable for bulk packaging of industrial products including low viscosity liquid detergents and food sauces It is multi-functional as we can use it for smaller packaging as well, and the exact amount is filled as it is applied with the same sensor as that of a scale.


■ Specification

- Application : 유리세정제, 세탁세제, 물비누, 샴푸, 식품(쏘스류), 꿀, 등
- Operating Speed : 1.5~3Pcs/min(10kg)
- Filling Range : 500g ~ 20kg
- Option : Supply Tank, FillingNozzle, Supplypump
- Air Pressure : 4 ~ 5㎏ / ㎠
- Power : 220V ~ 380V(3 Phase)
- Dimension : 850(W) x 950(L) x 1650(H)
